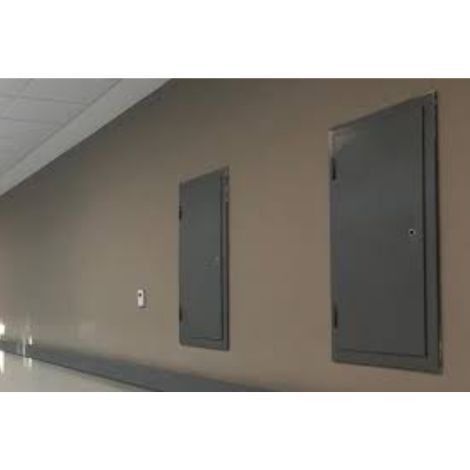

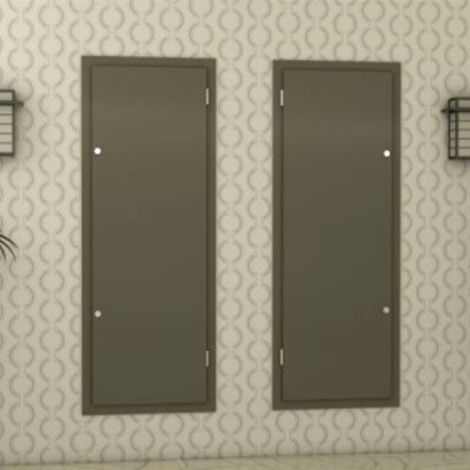

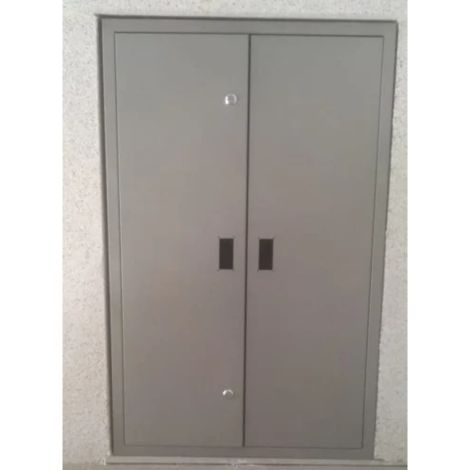

Shaft Doors
A plumbing shaft is an enclosed space designed for plumbing lines and services.
It is one of the most critical components of a building, ensuring that essential services, like electrical, fire, and more, are kept within an enclosed area.
This setup not only keeps the structure secure but also enhances the building's exterior aesthetics, ensuring a clean and streamlined look.
Specification
| Feature | Details |
|---|---|
| DOOR TYPE | FIRE RATED STEEL DOOR |
| FIRE RATING | 1HRS/2HRS |
| FRAME | 1.6MM GALAVANISED STEEL |
| DOOR SHUTTER | 1.2MM GALCANISED STEEL |
| DOOR THICKNESS | 46MM |
| INFILL | HONNEY COMB-140 GSM/ROCK WOOL-96KG/M’3 |
| DOOR TYPE | FIRE RATED STEEL DOOR |
| FIRE RATING | 1HRS/2HRS |
| FRAME | 1.6MM GALAVANISED STEEL |
| DOOR SHUTTER | 1.2MM GALCANISED STEEL |
| DOOR THICKNESS | 46MM |
| INFILL | HONNEY COMB-140 GSM/ROCK WOOL-96KG/M’3 |
Additional Details
Rebate Profile:
(1) 100 mm x 57 mm (2) 143 mm x 57 mm
Seal:
Optional - Fire/Smoke Seal 10 x 4MM
Bottom Seal:
Optional - Fire/Smoke Seal 10 x 4MM
Criteria:
Stability, Integrity, and Insulation
Finish:
Powder Coated 60-70 Micron - RAL
Vision Panel Vision Panel:
Not Required
Hardware:
Pin Type MS Hinges, Allen Key Shaft Lock, Flush Type Pool Handle, Concealed Flush Tower Bolt, Anchor/Fastener
Testing Standard:
BS 476 Part 20 & 22 or IS 3614 Part-2
Solutions:
Customized Solutions
Locking Arrangement
Allen Key Shaft Lock
Shaft Doors
A Plumbing Shaft refers to an enclosed space designed to house plumbing lines and services. It is one of the most important components of a building, as it safely contains essential services like electrical wiring, fire systems, and more. The plumbing shaft ensures that these services are neatly enclosed, maintaining the overall structure’s exterior aesthetics while providing efficient functionality.
Specification
Shaft Doors
A Plumbing Shaft refers to an enclosed space designed to house plumbing lines and services. It is one of the most important components of a building, as it safely contains essential services like electrical wiring, fire systems, and more. The plumbing shaft ensures that these services are neatly enclosed, maintaining the overall structure’s exterior aesthetics while providing efficient functionality.
| DOOR TYPE | FIRE RATED STEEL DOOR |
| FIRE RATING | 1HRS/2HRS |
| FRAME | 1.6MM GALAVANISED STEEL |
| DOOR SHUTTER | 1.2MM GALCANISED STEEL |
| DOOR THICKNESS | 46MM |
| INFILL | HONNEY COMB-140 GSM/ROCK WOOL-96KG/M’3 |
| REBATE PROFILE | (1) 100MM X 57MM (2) 143MM X 57MM |
| SEAL | OPTIONAL -FIRE/SMOKE SEAL 10X4MM |
| BOTTOM SEAL | OPTIONAL -FIRE/SMOKE SEAL 10X4MM |
| CRITERIA | STABILITY, INTEGRITY AND WITH INSULATION |
| FINISH | POWDER COATED 60-70 MICRON – RAL |
| VISION PANEL | NOT REQUIRED |
| HARDWARE | PIN TYPE MS HINGES, ALLEN KEY SHAFT LOCK, FLUSH TYPE POOL HANDLE, CONCEALED FLUSH TOWER BOLT, ANCHOR/FASTNER |
| TESTING STANDARD | BS 476 PART 20 & 22 OR IS 3614 PART-2 |
| SOLUTIONS | CUSTOMIZED SOLUTIONS |
