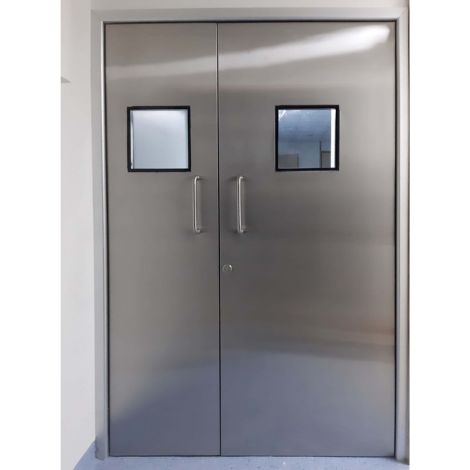

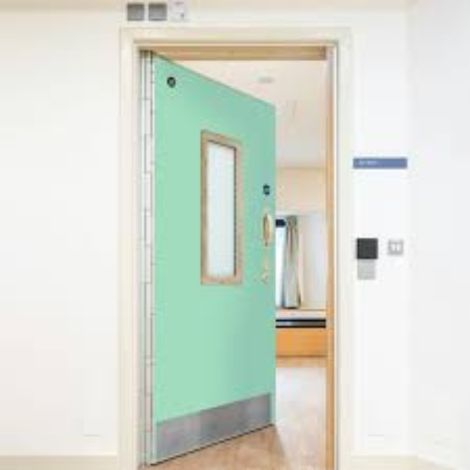

Lead Lined Doors
Surbhi Fire Doors offers a premium line of lead-lined metal that are manufactured to have an equal appearance to architectural designed doors and frames.
The frames are designed to support the lead-lined doors to provide a lead-lined interface between the door and the lead-lined wall in the adjacent walls.
Usually, they are attached to studs in the walls using a variety of techniques specifically designed to hold the door securely and prevent radiation shielding leakage.
Lead-lined doors are commonly specified for X-ray protection in: Aerospace Airports Defense environments Clinics Hospitals Imaging centers Veterinary offices Other healthcare environments
Specification
| Feature | Details |
|---|---|
| Door Type | Lead Lined Door in Steel Segments – Single Leaf/Double Leaf |
| STC Rating | Not Applicable |
| Fire Rating | Not Applicable |
| Frame | 1.2mm Galvanized Steel |
| Door Shutter | 1mm Galvanized Steel |
| Door Thickness | 46mm |
| Infill | Honeycomb-140 GSM, or Mineral Wool, including 2mm Lead Sheet |
| Rebate Profile | 100mm x 57mm |
| Seal | Optional |
| Bottom Seal | Optional |
| Criteria | Radiation Protection |
| Application | Atomic Research Centre, Nuclear Medicine, Radiology, Labs etc. |
| Vision Panel | Optional – Standard Size 200mm x 300mm – Glazed Lead Glass |
| Door Type | Lead Lined Door in Steel Segments – Single Leaf/Double Leaf |
| STC Rating | Not Applicable |
| Feature | Details |
|---|---|
| Door Type | Lead Lined Door in Steel Segments – Single Leaf/Double Leaf |
| STC Rating | Not Applicable |
| Fire Rating | Not Applicable |
| Frame | 1.2mm Galvanized Steel |
| Door Shutter | 1mm Galvanized Steel |
| Door Thickness | 46mm |
| Infill | Honeycomb-140 GSM, or Mineral Wool, including 2mm Lead Sheet |
| Rebate Profile | 100mm x 57mm |
| Seal | Optional |
| Bottom Seal | Optional |
| Criteria | Radiation Protection |
| Application | Atomic Research Centre, Nuclear Medicine, Radiology, Labs etc. |
| Vision Panel | Optional – Standard Size 200mm x 300mm – Glazed Lead Glass |
Additional Details
Hardware:
According to BOQ
Testing Standard:
AERB/DRS
Solutions:
Customized Solutions
Locking Arrangement
1. Mortise Dead Lock
2. Mortise Sash Lock
